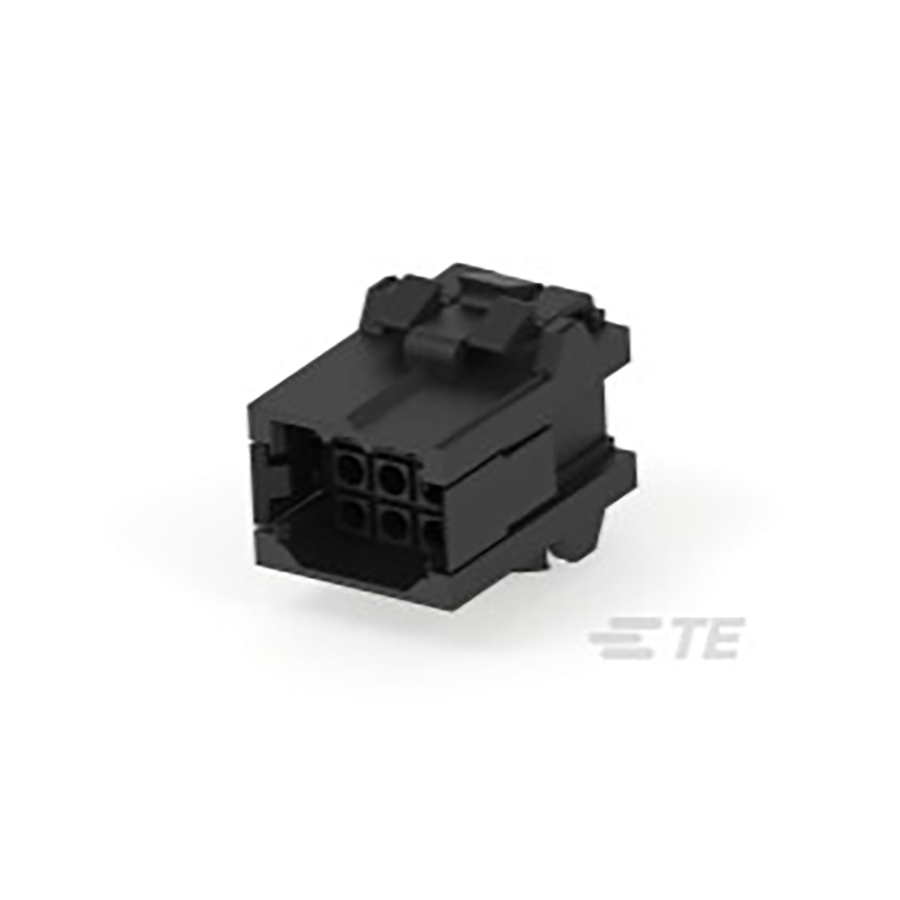

207440-1
Manufacturer:
TE Connectivity
Mfr.Part #:
207440-1
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Pin, Receptacle Number of Positions:9 Pitch:5 mm
| Parameter | Value |
|---|---|
| Length | 25.35 mm |
| Width | 23.8 mm |
| Termination | Crimp |
| Max Operating Temperature | 130 °C |
| Min Operating Temperature | -55 °C |
| Material | Thermoplastic |
| Packaging | Bulk |
| Depth | 33.02 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | Unknown |
| Contact Material(Contact Finish) | Copper, Gold |
| Pitch | 5 mm |
| Current Rating | 13 A |
| Max Current Rating | 14 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Red |
| Gender | Receptacle |
| Number of Contacts | 9 |
| ELV | Compliant |
| Connector Type | Pin, Receptacle |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Row Spacing | 5 mm |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Red, Black |
| Panel Thickness | 2.29 mm |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
Stock: 502
Distributors
pcbx
pcbxUnit Price$2.09629
Ext.Price$2.09629
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.09629 | $2.09629 |
| 10 | $1.89025 | $18.90250 |
| 25 | $1.82699 | $45.67475 |
| 50 | $1.64574 | $82.28700 |
| 100 | $1.61496 | $161.49600 |
| 300 | $1.55644 | $466.93200 |
| 500 | $1.50004 | $750.02000 |
| 1000 | $1.44569 | $1445.69000 |
